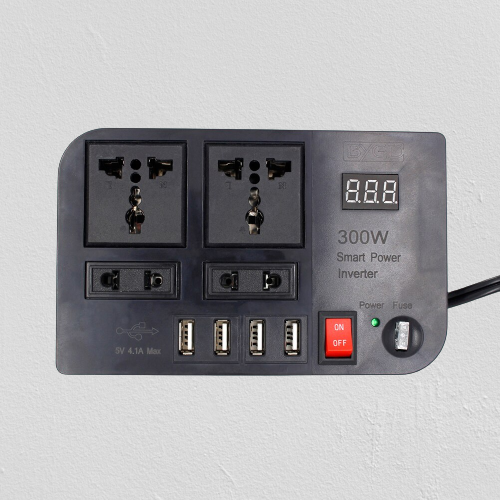

BowLift | Universal Fast Charging Car Power Converter Socket

This product is a device that converts DC voltage to AC voltage. Obtain the international advanced circuit design, with small size, easy operation, stable performance and high efficiency as the main advantages. For digital products, office appliances, small household appliances, portable power tools, etc.

• Low voltage protection.
• Overvoltage protection.
• Overload protection.
• Overheating protection.
• Output short circuit protection.

Instructions:
Incorrect connection may damage the inverter and electrical appliances, please connect in the following correct way:
1. When used in the car or the load is less than 200W:
A. Connect the red wire of the lamp plug to the "+" end of the inverter, the black wire to the "-" end of the inverter, and the lamp wiring screw.
B. Insert the lighter plug into the lighter socket, turn on the switch, and when the green light of the inverter is on, insert the electrical plug into the AC socket of the inverter.
2. When using an external vehicle or the load exceeds 200W:
Connect the "+" terminal of the inverter and the black battery wire to the "-" terminal of the inverter, then connect the clip of the red wire to the "+" battery terminal and the clip of the black wire to the "-" of the battery terminal.
A. Turn on the switch when the green light of the inverter is on, and insert the electrical plug into the AC socket of the inverter.
B. Separate the cable from the battery if not in use.

Specifications:
Maximum power: 300W
Input voltage: 12V
Output voltage: 220V/50Hz
Waveform: Modified Sine Wave
Applicable input interface: Lighter/battery clip
USB output: 5V 4 ports share 4.1A
Maximum Continuous Power Rating: 150W
Shell material: Flame retardant ABS
Size: 155*97*40mm

What's in The Box:
1x Universal Fast Charging Car Power Converter Socket
