Sliding gate drive garage door opener 370W/550W/750W | Bowlift

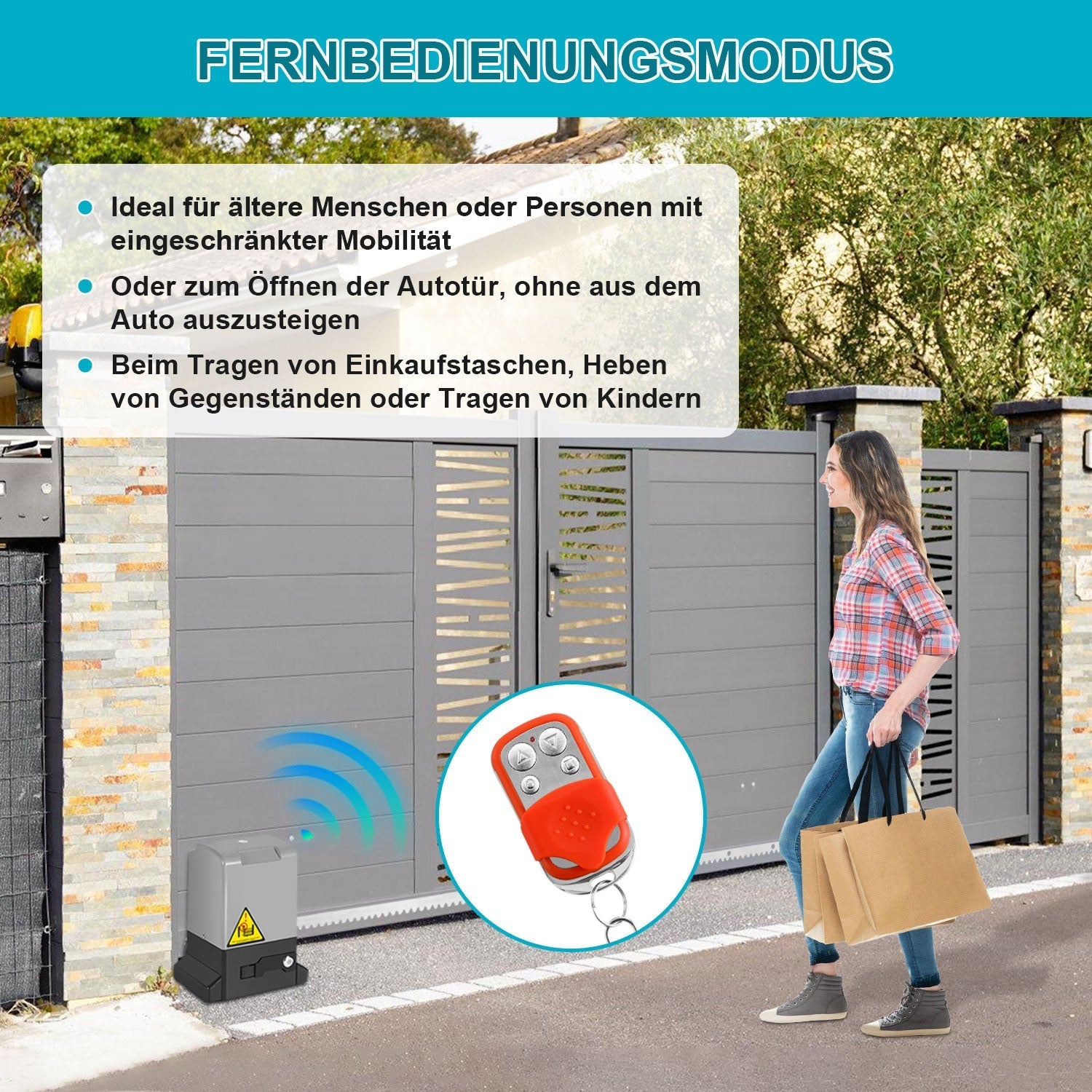

【COMFORTABLE】With 2 remote controls, you can conveniently open and close this gate from up to 50 m away with this door opener. You do not need to leave your car to open and close the gate.

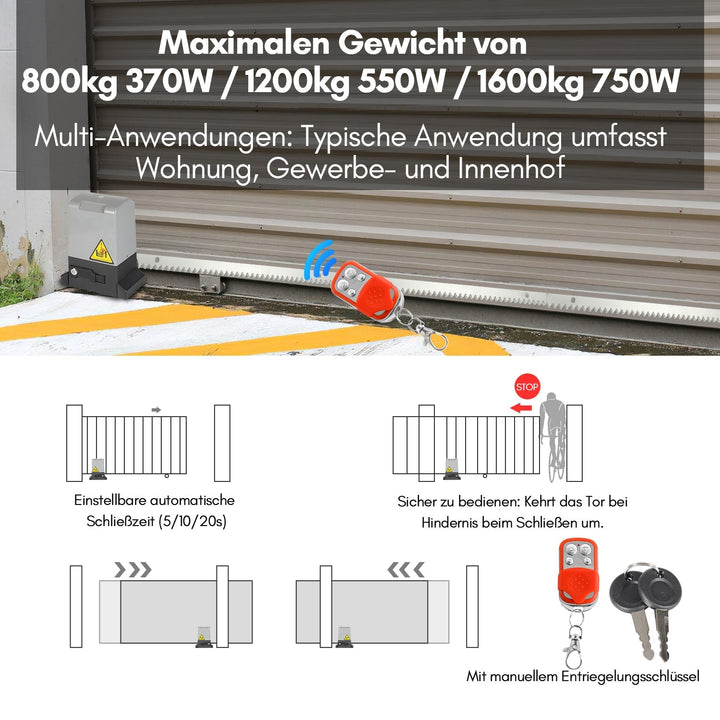

【FEATURES】With a 370W/550W/750W motor, this garage door opener can be used for doors weighing up to 800 kg/1200 kg/1600 kg and with a length of up to 12 m. At the same time, it operates with a noise level of less than 56 dB.

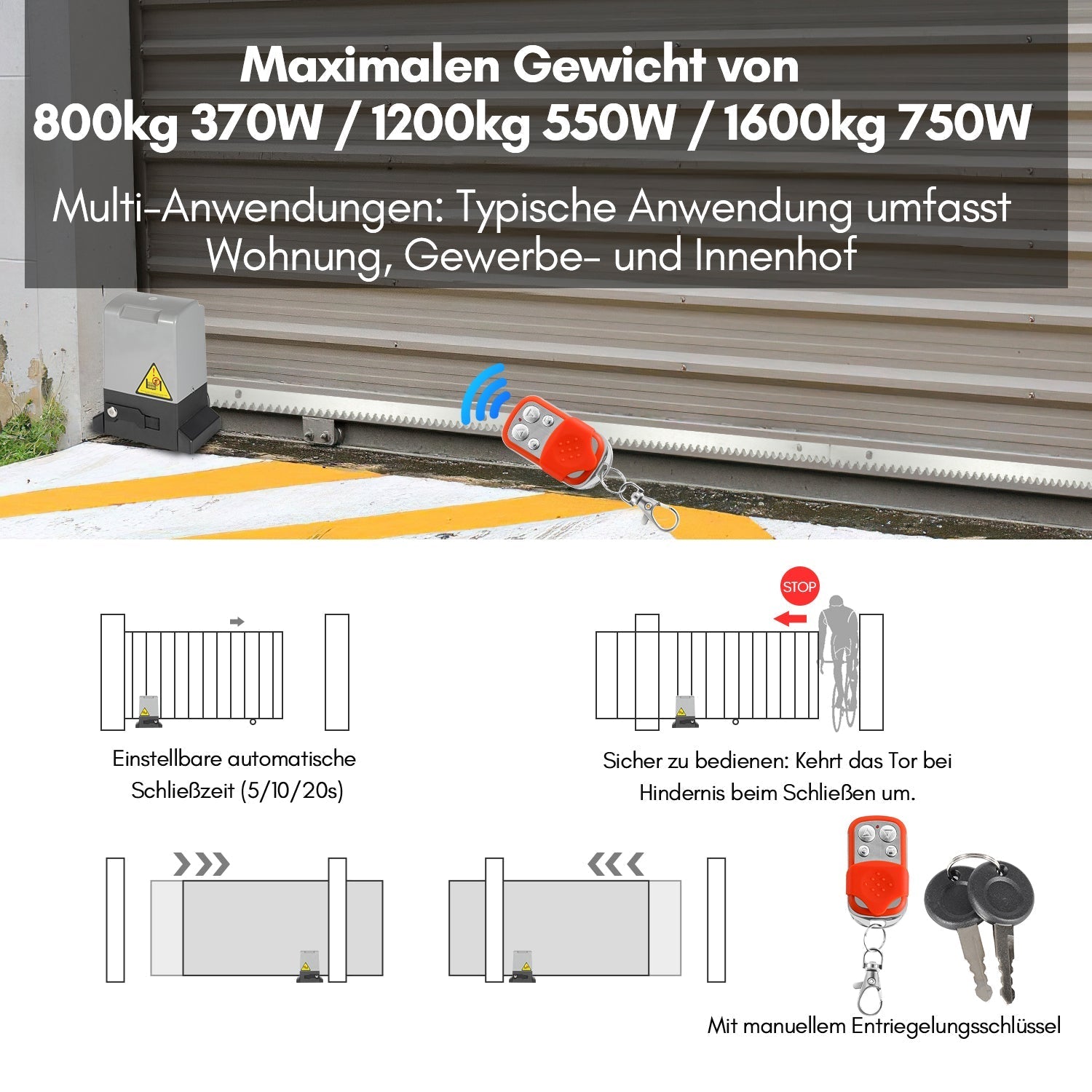

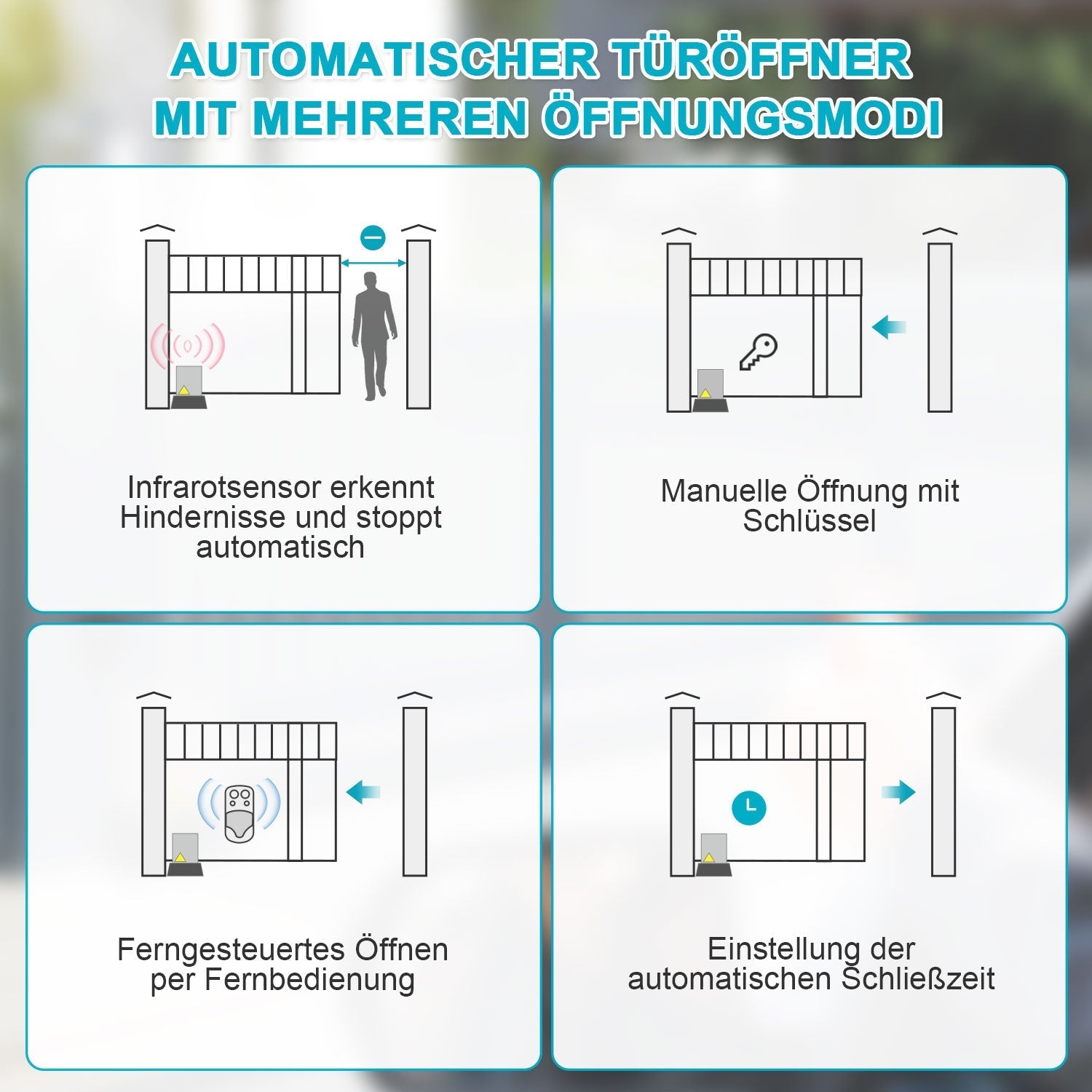

【AUTOMATIC CLOSING FUNCTION】With an automatic closing function, this sliding gate can be set to close automatically 5, 10, or 20 seconds after opening.

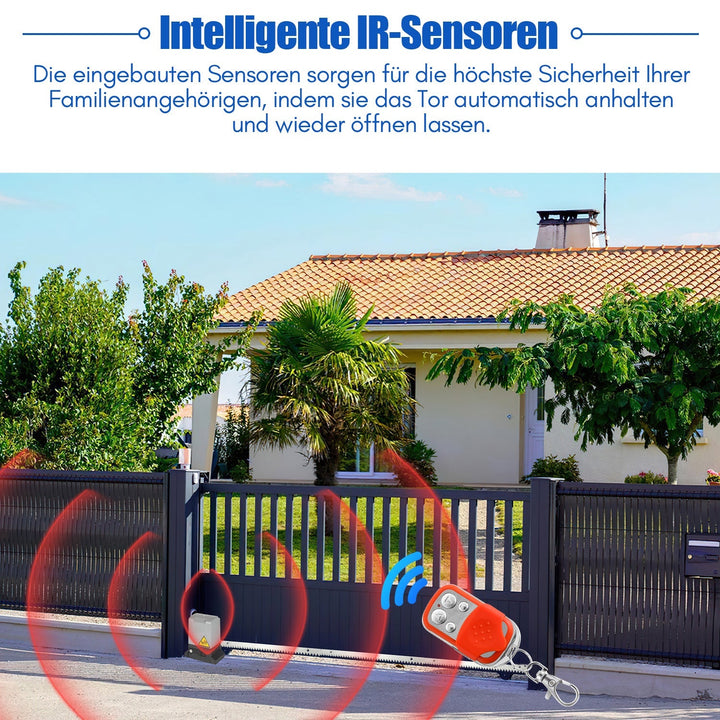

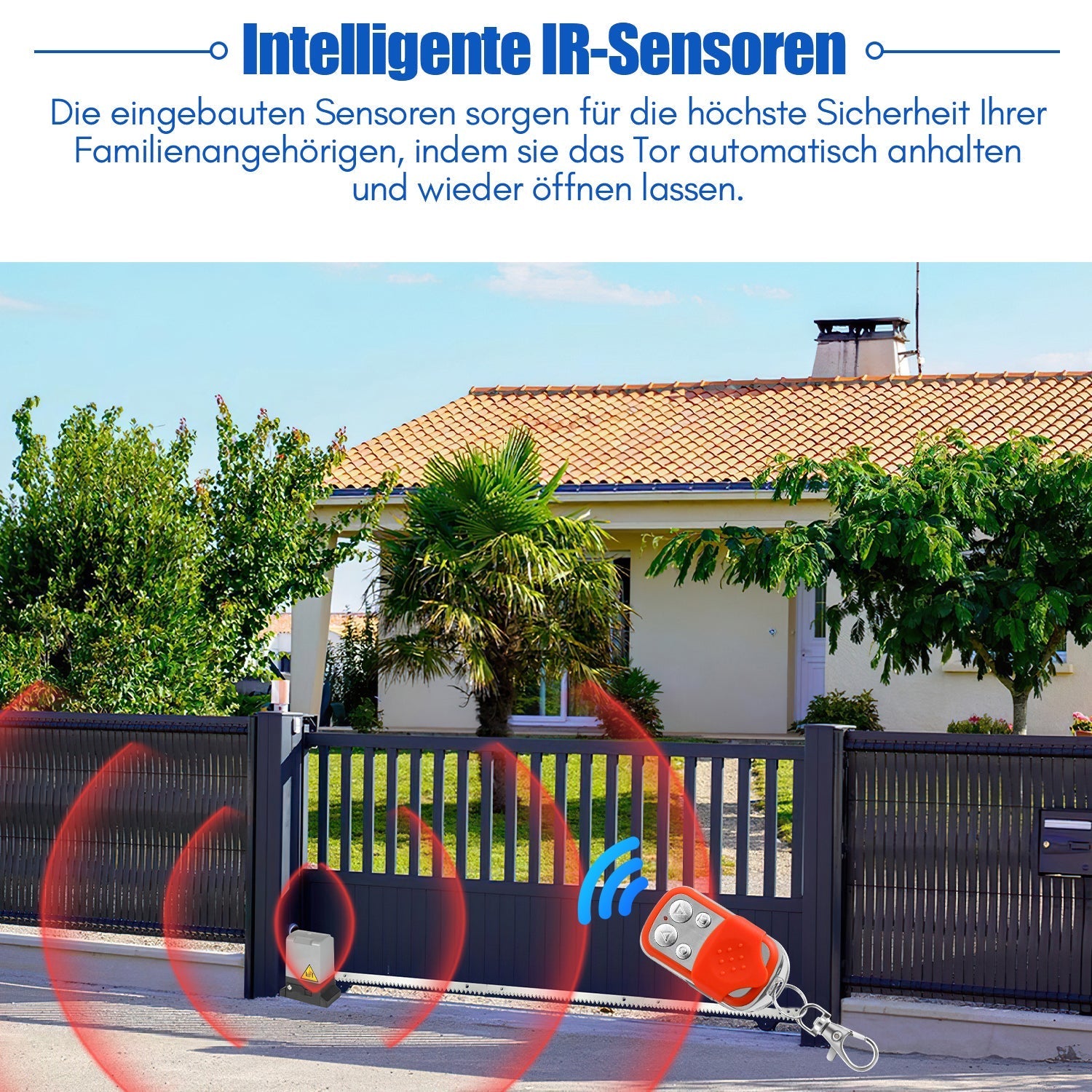

【Infrared Sensor and Auto-Stop】When hitting an obstacle, the door opens immediately, which is very safe to use and is widely used in access control systems, parking lots, defense walls, doors and windows, balconies, garages, passages, and other places.

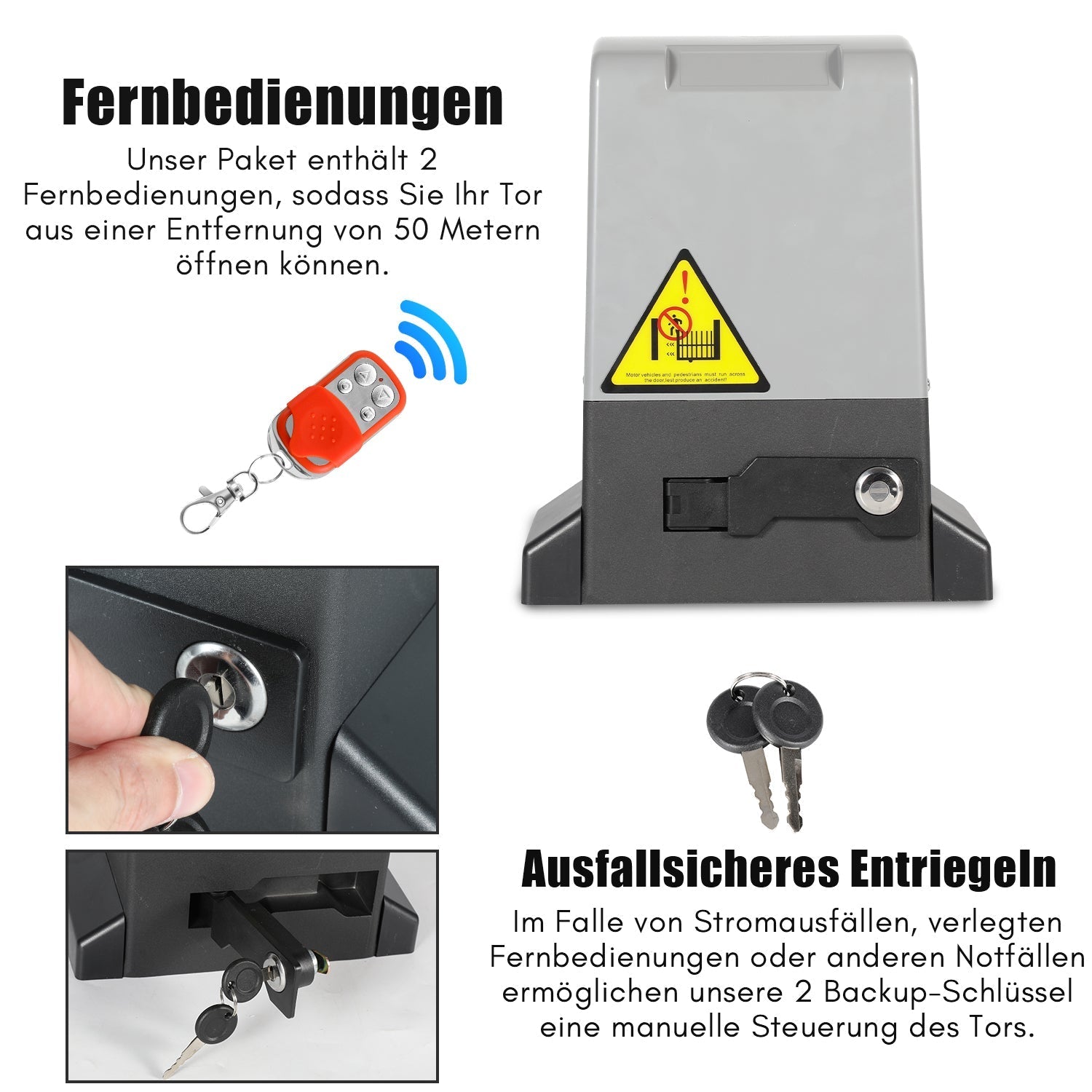

【HIGH SECURITY】Garage door opener with sturdy and compact design, suitable for use in wind and rain. Equipped with 2 manual release keys, the motor can be unlocked and the door can be moved manually during a power outage or malfunction.

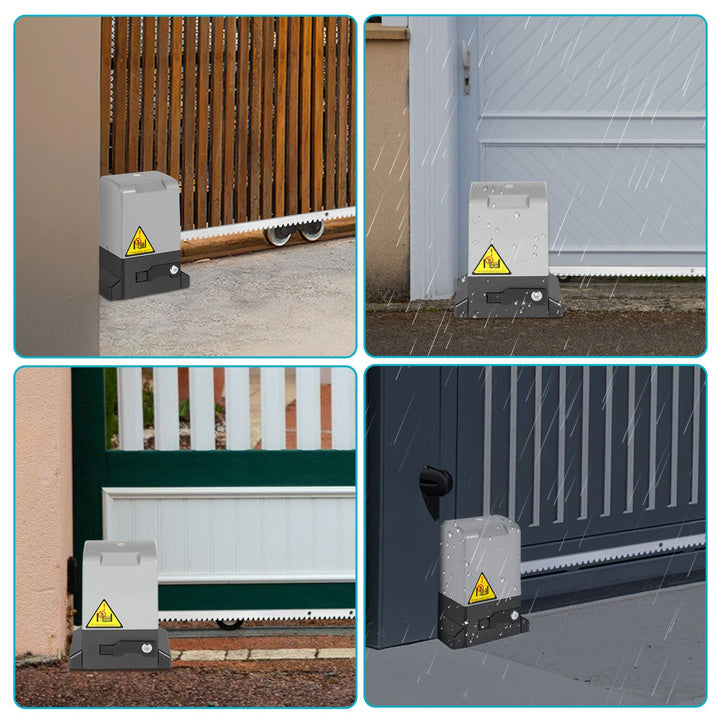

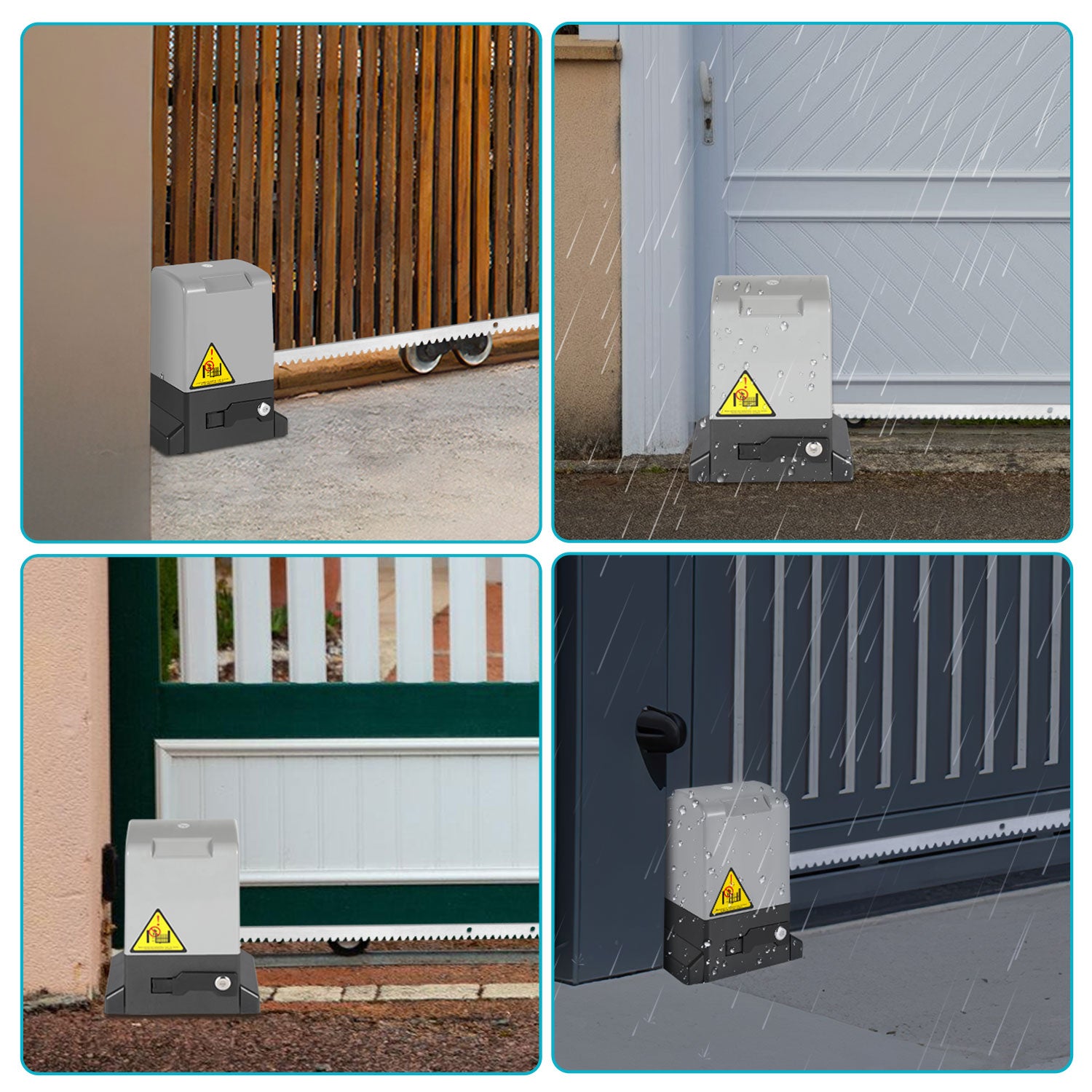

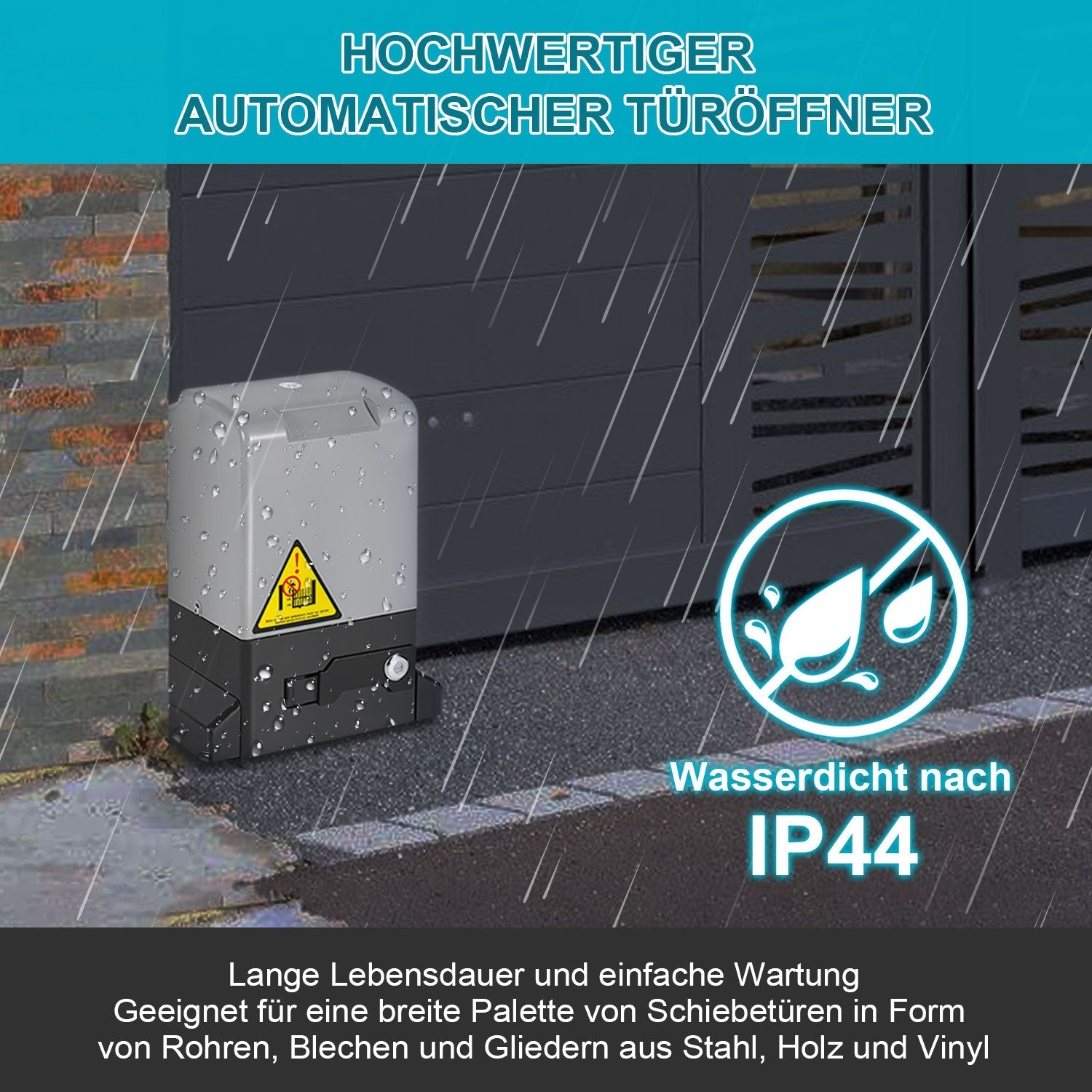

IP44 waterproof design: Equipped with a waterproof and dustproof housing, the machine is weatherproof and robust enough to withstand all weather conditions.

High movement speed: The powerful sliding gate drive is equipped with a pure copper motor and a stable base to ensure that the door opener opens smoothly at a speed of 12 m/min (39 ft/min).

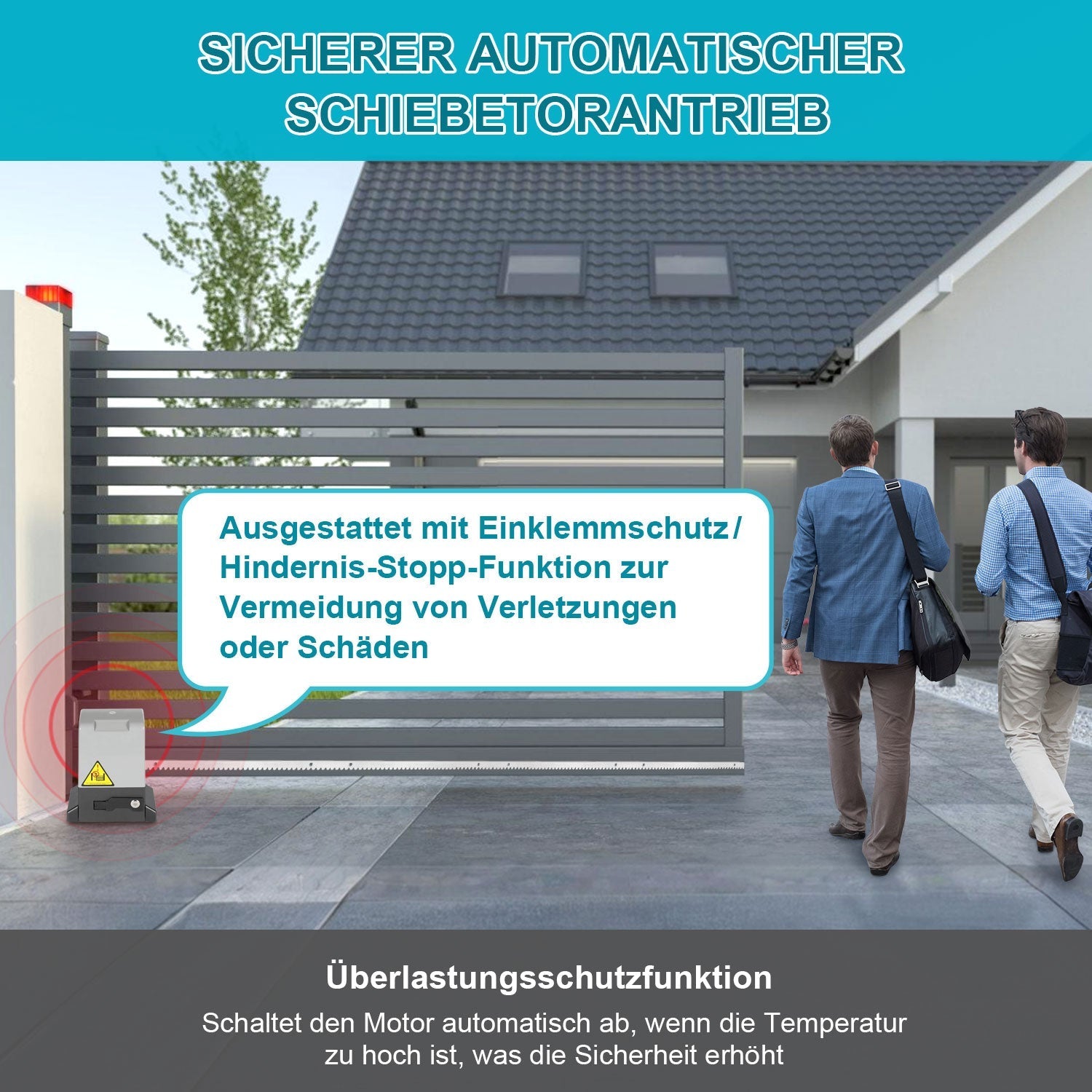

The circuit board has overload protection: The motor uses a pure copper core, and if the temperature is too high, the motor automatically cuts off the power supply to protect the motor.

Technical Data:
Operating temperature: -20°C - +70°C
Motor speed: 1470/rpm
Rated power: 370W / 550W / 750W
Weight: 20kg / 22.5kg / 23.5kg

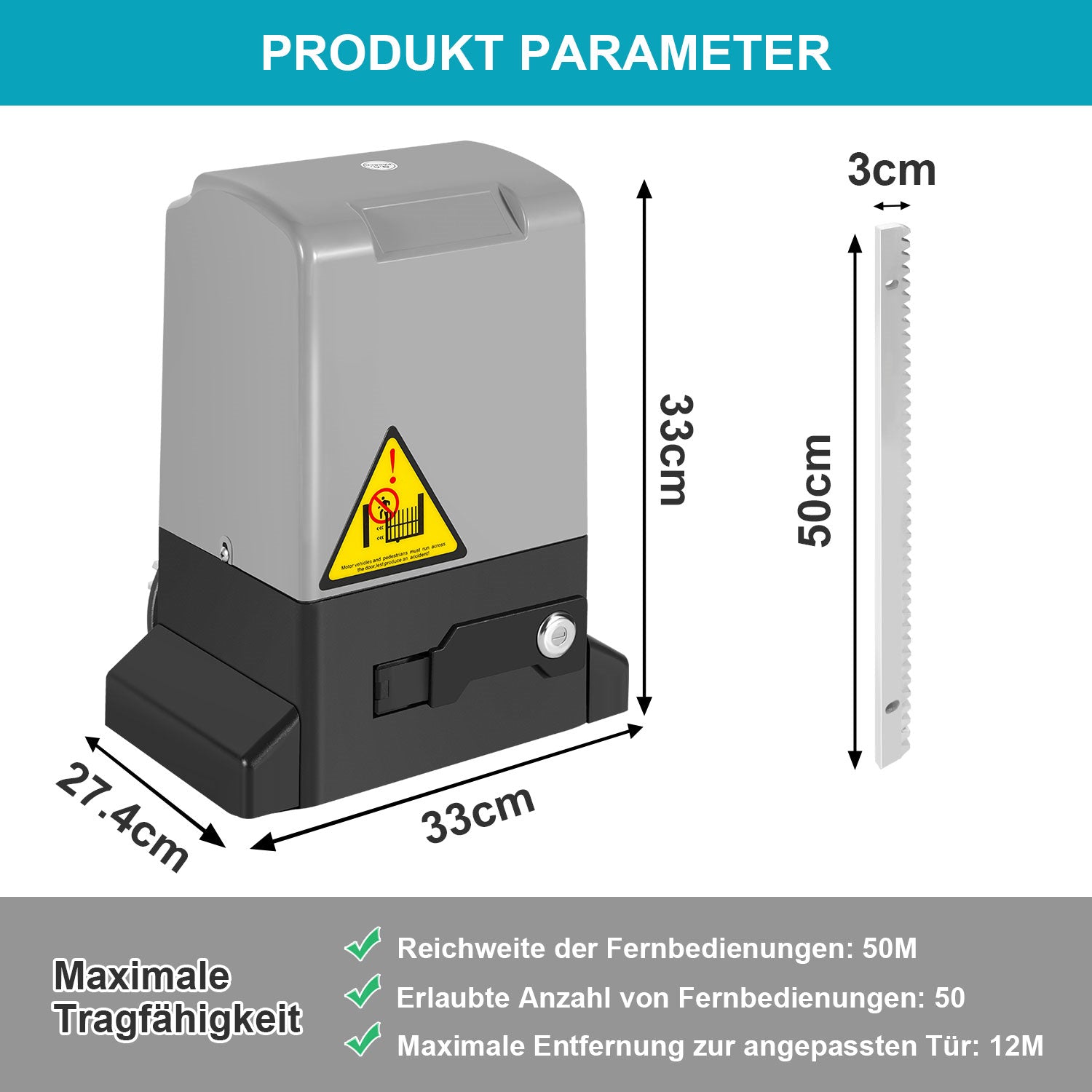

Size of the sliding door opener: 27.4 x 33 x 33 cm
Rack size (long x wide x thick): 50 cm x 3 cm x 8 mm
Rail: 4 m x 8 x 50 cm
Operating current: 3A
2 remote controls and 2 keys (remote control without batteries)
Number of allowed remote controls: 50A
Applicable maximum weight: 800 kg / 1200 kg / 1600 kg
Running speed: 12 meters/minute
Waterproof rating: IP44

CE certificate

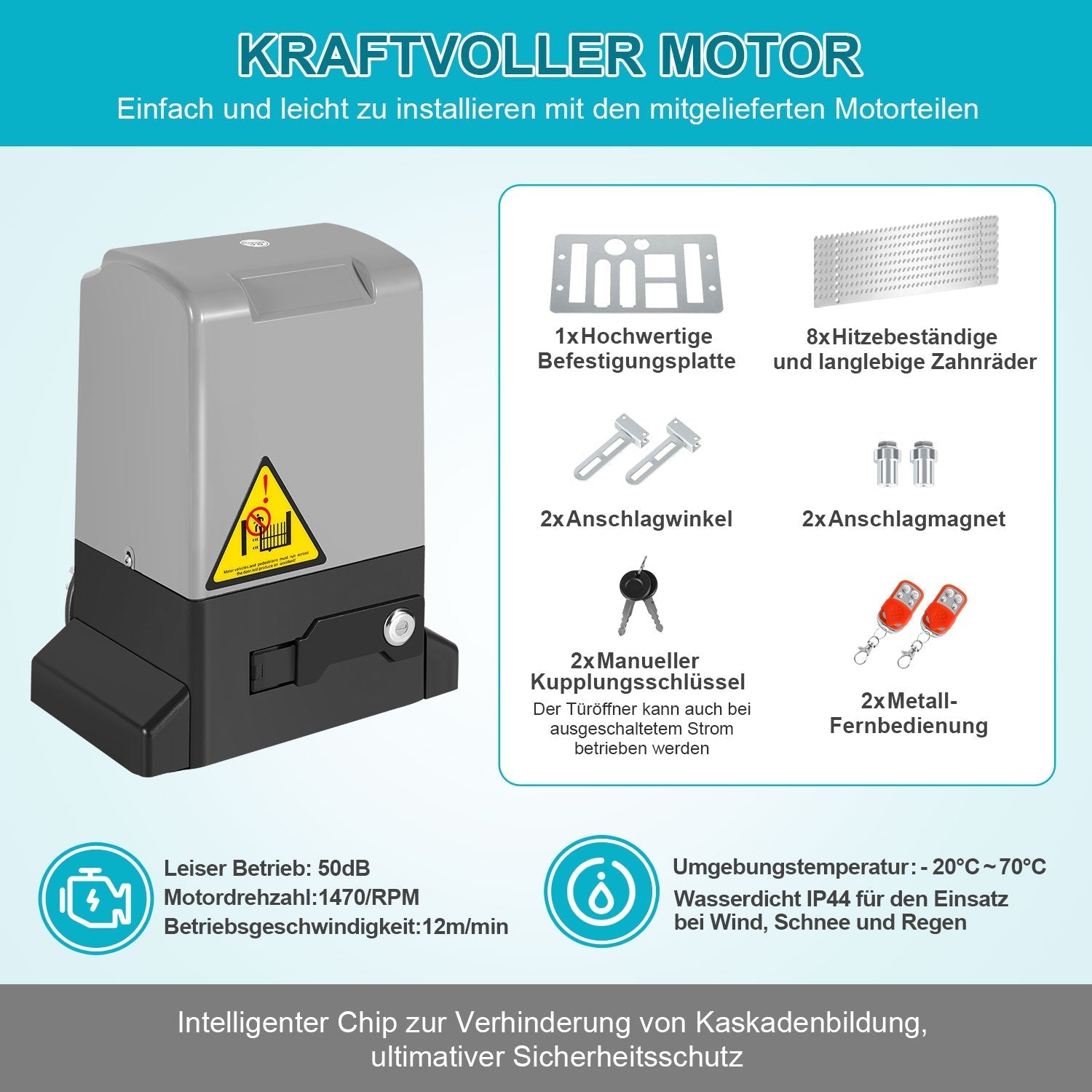

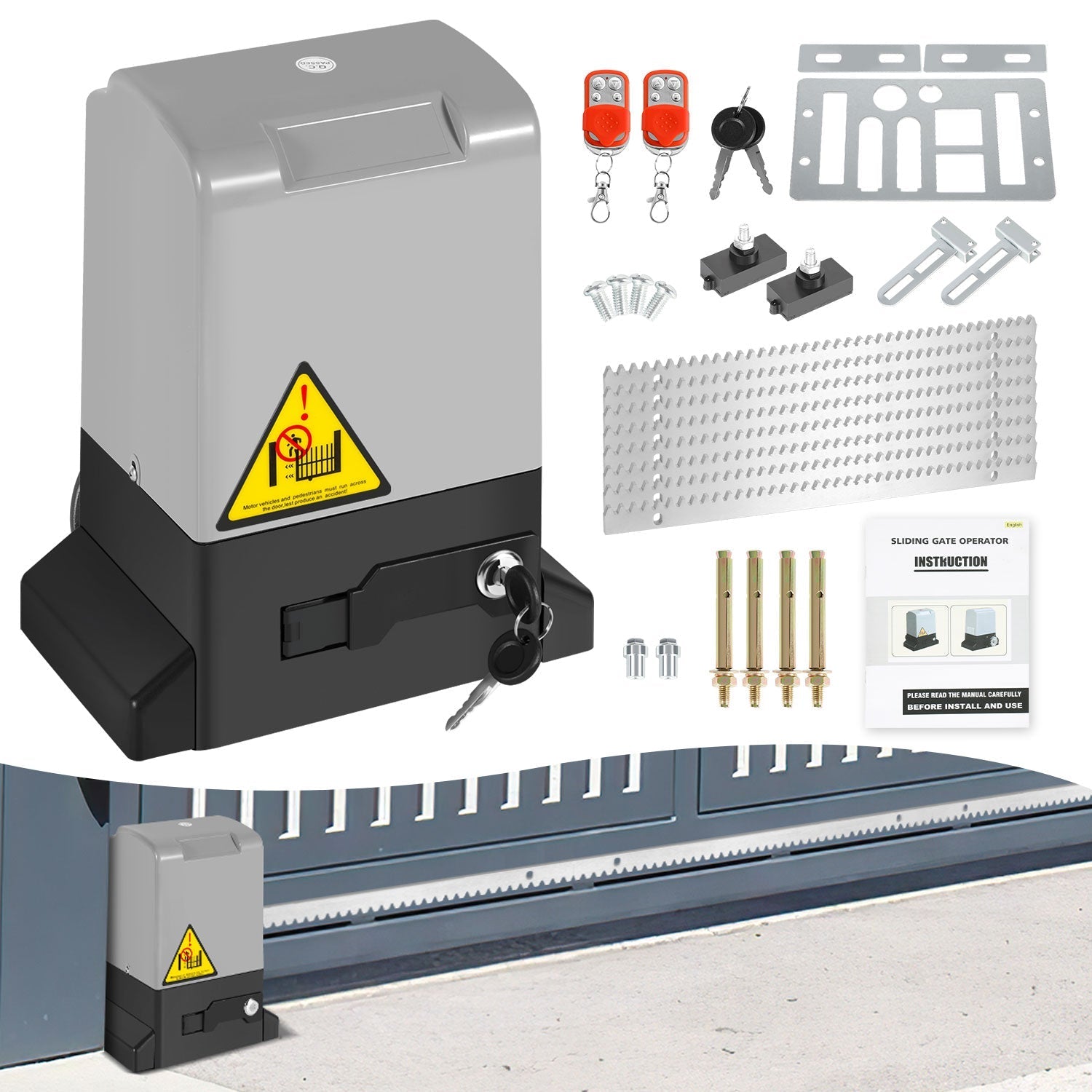

Delivery contents:
1 x sliding gate drive
2 x remote control
2 x release keys
1 x fixed base plate
2 x limit brackets
4 x pull pin screws
2 x limit magnets
2 x infrared sensors
2 x floor mounting brackets
8 x rack gears (each rack gear 50 cm long)
1 x user manual
